HMI Industrial-Touch-Control Terminal
Powerful, Flexible, Compact

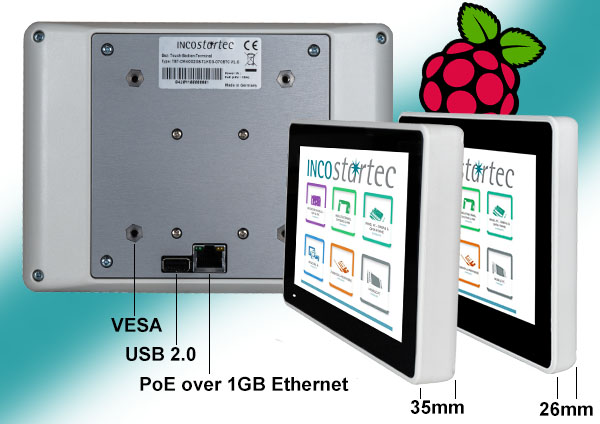

The new HMI "TBT-CM4x x y-T1KD3-070BTC+x" is a compact industrial touch operator terminal based on the Raspberry Pi CM4 module with ARM Cortex™-A72 quad-core (4x 1.44 GHz). Thanks to flexible memory configurations of 1–8 GB DRAM and 4–32 GB eMMC flash, the system is highly scalable.

The 7" TFT display (1024x600 pixels, IPS, 1000 cd/m²) with capacitive touchscreen offers brilliant image quality even in brightly lit environments. Communication options include 1x Ethernet 10/100/1000 Mbps with PoE (48 V) and 1x USB 2.0 host.

The system can be optionally expanded to include Wi-Fi and Bluetooth. With the Al-Di sensor controlling the backlight, the display adapts intelligently: it dims in the dark and increases the backlight brightness when someone approaches.

It is mounted using a VESA 75 bracket, allowing flexible integration into wall or desk systems. The terminal supports Linux and is suitable as an HTML5-compatible display system for industrial applications, HMI controls and IoT applications.

Further applications available on request.
